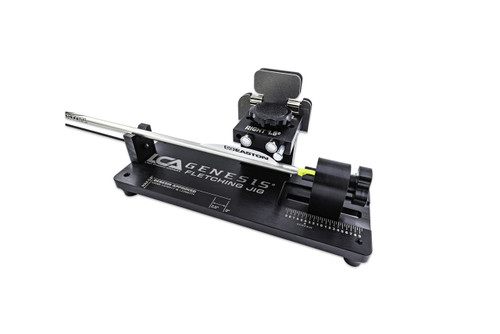

Compatible with any arrow diameter, standard nock styles, and any vane or feather up to 3 inches long, the Genesis Fletching Jig delivers precise, repeatable vane placement for target archers, bowhunters, youth shooters, schools, clubs, and anyone looking to build consistent, high-quality arrows.

To further simplify arrow building for Genesis archers, the jig also incorporates reference markings aligned with official Genesis 1820 arrow build guidelines. These markings help verify proper vane height and a maximum vane length of 3 inches without guesswork. Laser-etched scale marks guide vane placement exactly 1 inch from the nock throat and include a dedicated receiver alignment mark for proper Genesis 1820 arrow setup. The indexed nock receiver is labeled 1, 2, and 3 to simplify true 3-fletch rotation—ideal for Genesis 1820 builds that use a single-color vane in position 1 and matching vanes in positions 2 and 3.

The jig applies a precise 1.5° left or right offset—recommended for clean clearance through the Genesis Competition Arrow Rest—and can also be set straight when desired. The micro-adjustable tower allows fine-tuning of clamp position for accurate, repeatable vane placement on any arrow, while the integrated arrow tip holder keeps the shaft fully seated throughout the fletching process.

Each Genesis Fletching Jig is precision-milled for long-term durability and alignment and paired with a 3-inch solid-steel clamp engineered for consistent pressure and vane adhesion. Rigid construction and tight machining tolerances deliver dependable precision, arrow after arrow.

Features:  

Compatible with any arrow diameter, standard nock styles, and vanes or feathers up to 3 inches

Precision 1.5° left or right offset, plus straight configuration

Micro-adjust clamp centering for precise vane placement

3-inch solid steel clamp for durability and consistent vane adhesion

Integrated arrow tip holder to keep the shaft fully seated in the nock receiver during fletching

Laser-etched reference markings for Genesis-approved vane height and maximum 3-inch length

Dedicated receiver alignment mark for precise 1-inch vane placement from the nock throat

Indexed 1-2-3 nock receiver for true 3-fletch rotation and Genesis 1820 arrow color configuration

What's Included:  

1 qty. Genesis Fletching Jig Base Assembly

1 qty. Nock Receiver

1 qty. Nock Receiver Thumb Screw

1 qty. 3” Steel Clamp

1 qty. Clamp Alignment Pin

1 qty. Arrow Tip Holder + Bungee Cord

1 qty. Thumb Knob
